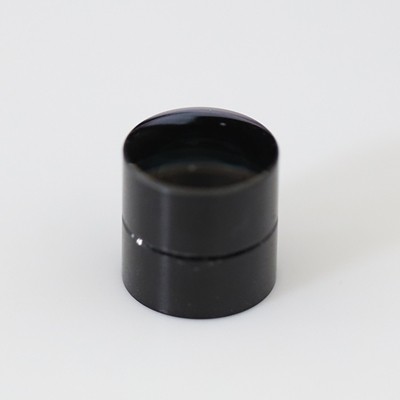

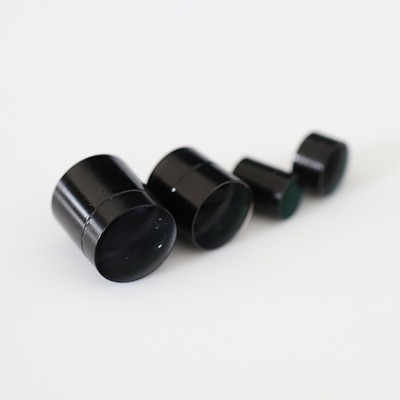

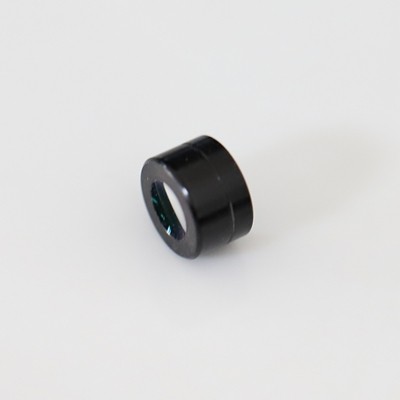

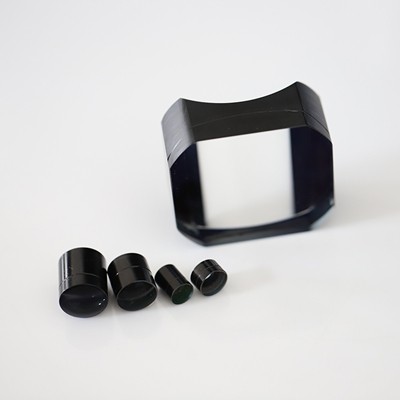

Edge Blackened Achromatic Lenses for Low-Stray-Light Optical Systems

Edge Blackened Achromatic Lenses are designed for optical systems that require both color correction and stray light control. The achromatic structure helps reduce chromatic aberration by combining optical glass materials with different dispersion properties, while the blackened lens edge helps absorb unwanted light reflection from the side surface.

Compared with standard achromatic lenses, edge blackened achromatic lenses can improve image contrast, reduce glare, and enhance optical system stability. They are especially suitable for imaging systems, microscopes, machine vision, laser optics, medical devices, and high-precision optical instruments.

Realpoo Optics provides custom edge blackened achromatic lenses according to customer drawings, samples, optical design files, or application requirements. We can customize the lens diameter, focal length, glass material, coating, edge blackening method, and mechanical dimensions.

Key Features

• Achromatic design for reduced chromatic aberration
• Blackened edge treatment to reduce stray light
• Improved image contrast and optical clarity
• Reduced internal reflection and ghost images
• Suitable for visible, NIR, and broadband optical systems
• Custom diameter, focal length, thickness, and coating available
• AR, BBAR, MgF2, and custom coatings available
• Precision cementing, polishing, centering, and inspection
• OEM manufacturing based on drawings or samples

Common Specifications

• Lens Type: Edge blackened achromatic lens
• Structure: Cemented doublet or customized achromatic assembly
• Material: N-BK7, H-K9L, F2, H-ZF series, fused silica, or custom optical glass
• Diameter: Customized
• Focal Length: Positive or negative focal length available
• Surface Quality: 60/40, 40/20, or higher precision upon request
• Surface Accuracy: λ/4, λ/8, λ/10 available
• Centering Accuracy: ≤3 arc minutes or customized
• Coating Options: MgF2, VIS AR, NIR AR, VIS-NIR BBAR coating
• Edge Treatment: Edge blackening, fine ground edge, polished edge
• Production Type: Prototype, small batch, and volume production

Applications

Edge Blackened Achromatic Lenses are widely used in:

• High-contrast imaging systems
• Microscope optical systems
• Machine vision and inspection systems
• Laser focusing and collimation systems
• Medical optical devices
• Optical measurement instruments
• Camera lens assemblies
• Projection optical systems
• Scientific research equipment
• Customized optical modules

Custom Edge Blackened Achromatic Lens Manufacturing

Realpoo Optics specializes in custom achromatic lenses and precision optical components. For edge blackened achromatic lenses, we support customized optical design, glass selection, coating solutions, precision polishing, cementing, centering, and edge blackening treatment.

Our manufacturing process focuses on reducing stray light, improving optical contrast, and ensuring stable performance in optical assemblies. Whether you need prototype samples, small-batch production, or regular volume supply, Realpoo Optics can provide reliable edge blackened achromatic lens solutions for your optical system.
