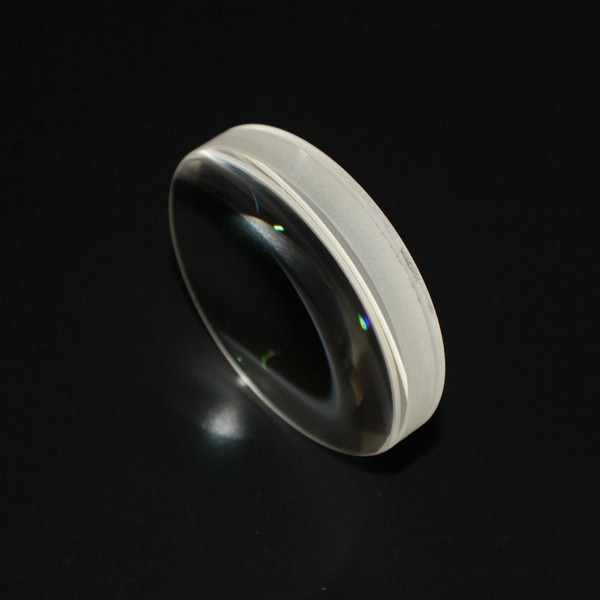

Large Diameter Achromatic Lenses for High-Performance Optical Systems

Large Diameter Achromatic Lenses are designed for optical systems that require a wide aperture, excellent image quality, and reduced chromatic aberration. Compared with standard singlet lenses, achromatic lenses can bring different wavelengths closer to the same focal point, reducing color fringing and improving image sharpness.

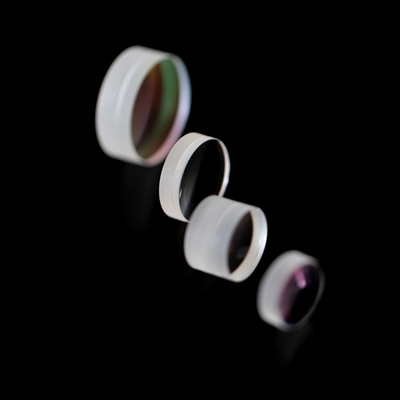

These lenses are commonly made by cementing two optical elements together, usually a positive crown glass lens and a negative flint glass lens. This structure provides better chromatic correction and spherical aberration control, making large diameter achromatic lenses suitable for demanding optical systems.

Realpoo Optics provides custom large diameter achromatic lenses according to customer drawings, samples, optical design files, or application requirements. We can customize diameter, focal length, coating, glass material, edge treatment, and mechanical dimensions.

Key Features

• Large clear aperture for wide-beam and imaging applications
• Excellent chromatic aberration correction
• Improved image sharpness and focusing stability
• Better performance than single spherical lenses
• Custom diameter, focal length, thickness, and coating available
• Suitable for visible, NIR, and broadband optical systems
• AR, BBAR, MgF2, and custom coatings available
• Edge blackening available to reduce stray light
• OEM manufacturing based on drawings or samples

Common Specifications

• Lens Type: Large diameter achromatic lens
• Structure: Cemented doublet or customized achromatic assembly
• Material: N-BK7, H-K9L, F2, H-ZF series, fused silica, or custom optical glass
• Diameter: Custom large sizes available
• Focal Length: Positive or negative focal length available
• Surface Quality: 60/40, 40/20, or higher precision upon request
• Surface Accuracy: λ/4, λ/8, λ/10 available
• Centering Accuracy: ≤3 arc minutes or customized
• Coating Options: MgF2, VIS AR, NIR AR, VIS-NIR BBAR coating
• Edge Treatment: Fine ground, polished edge, blackened edge
• Production Type: Prototype, small batch, and volume production

Applications

Large Diameter Achromatic Lenses are widely used in:

• Large-aperture imaging systems
• Beam expansion systems
• Projection optical systems
• Optical measurement instruments
• Laser collimation and focusing systems
• Machine vision and inspection systems
• Telescope and observation instruments
• Scientific research equipment
• Medical and laboratory optical devices
• Customized optical assemblies

Custom Large Diameter Achromatic Lens Manufacturing

Realpoo Optics specializes in custom optical components and precision lens manufacturing. For large diameter achromatic lenses, we support customized optical design, material selection, coating solutions, precision polishing, cementing, centering, and inspection.

Our production process focuses on stable optical performance, accurate dimensional control, and reliable quality consistency. Whether you need prototype samples, small-batch production, or regular volume supply, Realpoo Optics can provide practical large diameter achromatic lens solutions for your optical system.
