Custom Optical Prisms Manufacturer

Optical prisms are precision optical components used to reflect, deviate, rotate, invert, split or redirect light in optical systems. They are widely used in laser systems, imaging instruments, measuring devices, telescopes, microscopes, surveying equipment and scientific research applications.

Realpoo Optics provides custom optical prism manufacturing based on customer drawings, samples or optical design requirements. We support different prism types, optical materials, surface accuracy levels, angle tolerances and coating solutions for visible, ultraviolet, near-infrared and infrared applications.

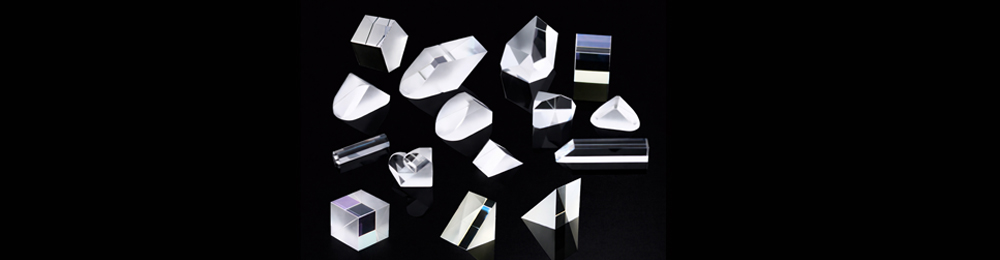

Optical Prism Types We Manufacture

We offer a wide range of standard and custom optical prisms, including:

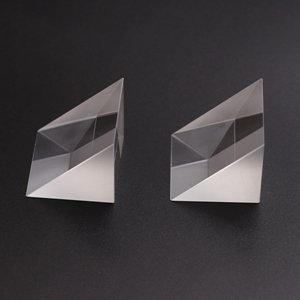

• Right Angle Prisms
• Penta Prisms

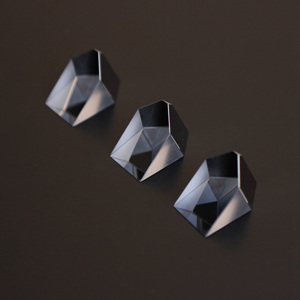

• Roof Prisms
• Dove Prisms
• Wedge Prisms
• Corner Cube Prisms
• Beamsplitter Prisms
• Rhomboid Prisms
• Equilateral Prisms
• Custom Optical Prisms

Each prism can be customized according to size, material, coating, angle accuracy, surface quality and optical performance requirements.

Material Options

We manufacture optical prisms using a variety of optical glass and crystal materials, including:

• N-BK7
• H-K9L
• Fused Silica
• Sapphire
• CaF2
• BaF2
• ZnSe
• ZnS
• Silicon
• Germanium
• Other optical glass materials upon request

Material selection depends on wavelength range, transmission requirements, thermal stability, mechanical strength and application environment.

Coating Options

Different coating options are available to improve prism performance:

• AR Coating
• BBAR Coating
• High Reflective Coating
• Aluminum Coating
• Silver Coating
• Gold Coating
• Beamsplitter Coating
• Polarizing Coating
• Blackened Edge Treatment

Custom coating can be designed according to wavelength, incident angle and reflectance or transmittance requirements.

Manufacturing Capabilities

Our prism manufacturing capabilities include precision cutting, grinding, polishing, beveling, coating, cementing and inspection. We can provide both prototype samples and batch production for OEM optical systems.

Typical specifications include:

• Material: BK7, Fused Silica, Sapphire, CaF2, ZnSe, ZnS
• Dimension: Custom size available
• Surface Quality: 60-40, 40-20, 20-10
• Surface Accuracy: λ/4, λ/8, λ/10
• Angle Tolerance: ±3 arc min, ±1 arc min or better
• Clear Aperture: Customized
• Coating: AR, HR, BBAR, beamsplitter coating
• Edge: Fine ground, chamfered or blackened

Applications

Optical prisms are widely used in:

• Laser beam steering
• Optical imaging systems
• Microscopes and telescopes
• Surveying instruments
• Rangefinders
• Medical optical devices
• Industrial inspection systems
• Scientific research instruments
• Optical communication systems

Why Choose Realpoo Optics

Realpoo Optics focuses on custom optical component manufacturing. We provide engineering support, material selection advice, coating solutions and precision quality inspection for custom prism projects.

Whether you need standard right angle prisms or complex custom prism assemblies, we can support your optical design from prototype to mass production.

Request a Quote

Please send us your prism drawing, material requirement, size, coating specification and application details. Our engineering team will provide a suitable manufacturing solution and quotation.
