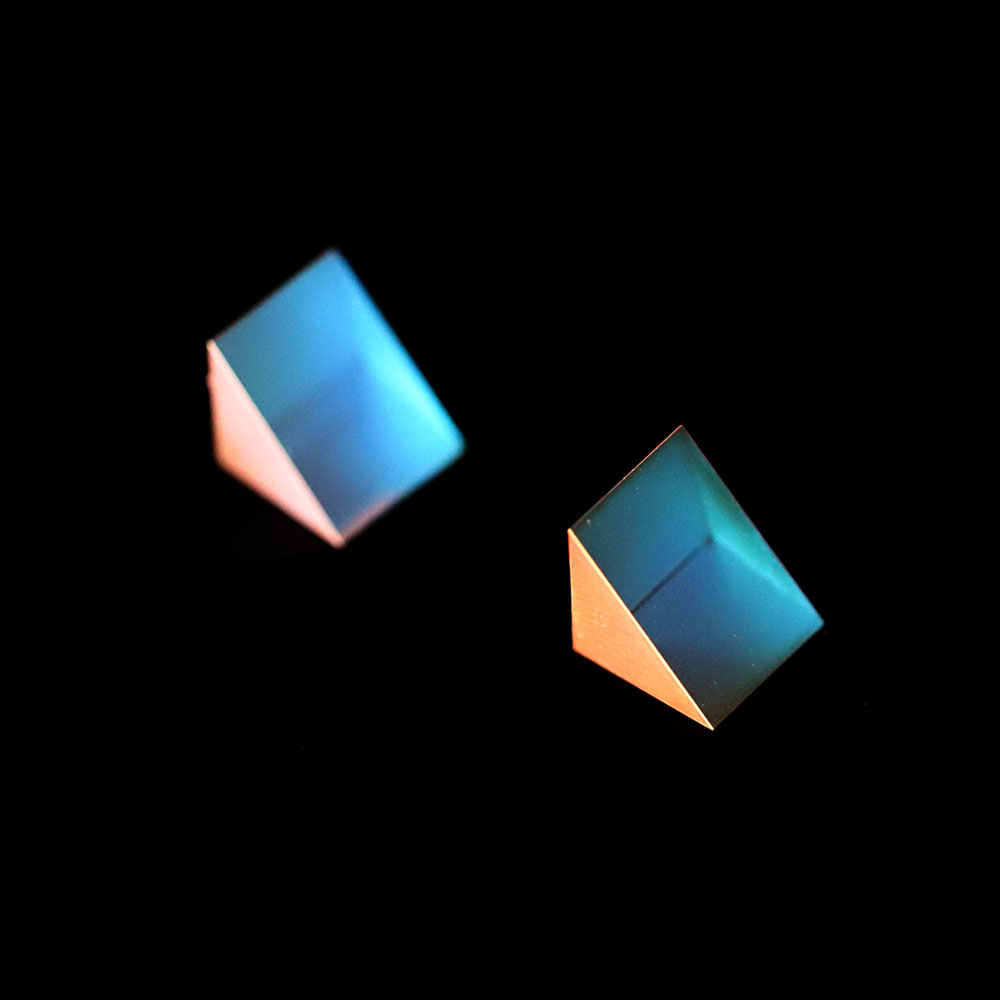

Custom Right Angle Prisms

Right angle prisms are one of the most commonly used optical prisms. They are designed with two perpendicular faces and one hypotenuse face, allowing them to reflect, deviate or redirect light paths in compact optical systems.

Depending on how the prism is used, a right angle prism can provide 90-degree beam deviation, 180-degree beam reflection or image inversion. It is widely used in laser systems, imaging devices, telescopes, microscopes and optical instruments.

Product Features

• 90° beam deviation or 180° beam reflection
• Compact and stable optical structure
• Suitable for imaging and laser applications
• Available with AR coating or reflective coating
• Custom size, material and angle tolerance available
• Blackened edges available to reduce stray light

Material Options

Right angle prisms can be manufactured from:

• N-BK7
• H-K9L
• Fused Silica
• Sapphire
• CaF2
• ZnSe
• ZnS
• Other optical materials upon request

BK7 and H-K9L are widely used for visible applications. Fused silica is suitable for UV and high-power laser systems. Sapphire is recommended for applications requiring high hardness and durability.

Technical Specifications

• Material: BK7, H-K9L, Fused Silica, Sapphire
• Dimension: Custom from small size to large size
• Surface Quality: 60-40, 40-20, 20-10
• Surface Accuracy: λ/4, λ/8, λ/10
• Angle Tolerance: ±3 arc min, ±1 arc min or better
• Clear Aperture: Customized
• Coating: AR, BBAR, HR, Al, Ag, Au
• Edge Treatment: Chamfered or blackened

Coating Options

Right angle prisms can be supplied uncoated or coated according to optical requirements. AR coating improves transmission on entrance and exit faces. Reflective coating can be applied to the hypotenuse face when total internal reflection is not sufficient or when special wavelength performance is required.

Available coatings include:

• MgF2 coating
• VIS AR coating
• NIR AR coating
• BBAR coating
• Aluminum reflective coating
• Silver reflective coating
• Gold reflective coating

Applications

Right angle prisms are commonly used in:

• Laser beam reflection
• Optical path folding
• Image redirection
• Microscopes
• Telescopes
• Inspection instruments
• Rangefinders
• Laboratory optical systems

Custom Manufacturing

Realpoo Optics provides custom right angle prisms according to customer drawings and optical specifications. We support prototype production, small batch orders and OEM manufacturing.

Please provide the required material, size, surface quality, angle tolerance, coating and application wavelength for quotation
