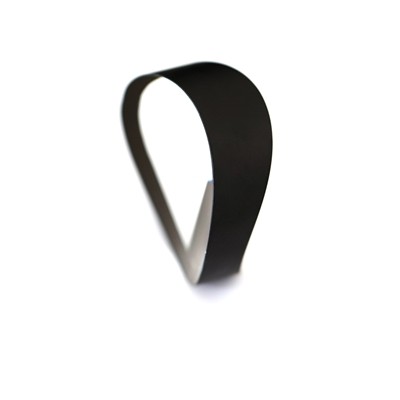

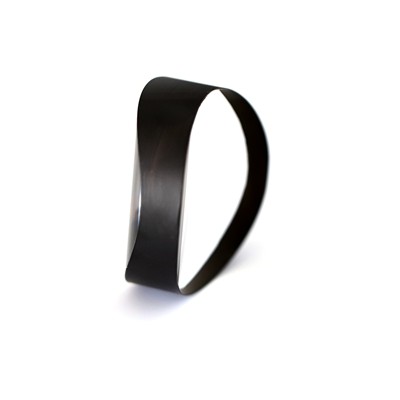

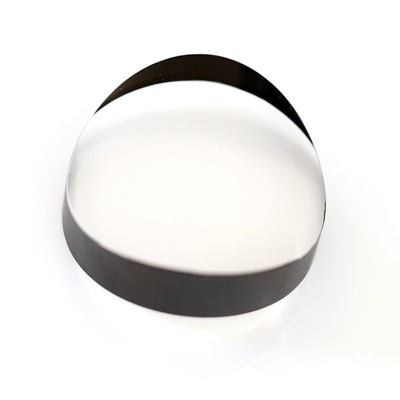

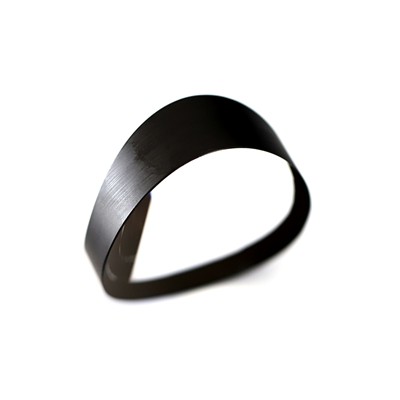

Custom Cylindrical Lenses
Precision Custom Cylindrical Lenses for Optical Systems
Custom cylindrical lenses are precision optical components designed to focus, expand, or reshape light along a single axis. Unlike conventional spherical lenses, cylindrical lenses provide optical power primarily in one direction, making them suitable for laser beam shaping, line generation, astigmatism correction, and specialized imaging systems.
Realpoo Optics supplies custom cylindrical lenses based on customer specifications, optical designs, and technical drawings. We support a variety of lens geometries, optical materials, dimensions, and surface treatments to meet the requirements of industrial and scientific optical applications.
Key Features
-
Custom plano-convex and plano-concave cylindrical lens designs
-
Biconvex, biconcave, and specialized cylindrical lens configurations
-
Custom dimensions, thicknesses, and focal lengths
-
N-BK7, fused silica, and other optical materials
-
Rectangular, square, circular, and special outer profiles
-
Optical surface quality and dimensional tolerances specified by drawings
-
Uncoated and anti-reflection coated options
-
OEM optical components for prototype and production requirements
Custom Cylindrical Lens Types
Plano-Convex Cylindrical Lenses
Positive cylindrical lenses with one flat surface and one convex cylindrical surface, commonly used for single-axis focusing and laser line generation.
Plano-Concave Cylindrical Lenses
Negative cylindrical lenses featuring one flat surface and one concave cylindrical surface, suitable for beam expansion in one axis and optical beam-shaping systems.
Biconvex Cylindrical Lenses
Positive cylindrical lenses incorporating two convex cylindrical surfaces for specific focusing and imaging requirements.
Biconcave Cylindrical Lenses
Negative cylindrical lenses with two concave cylindrical surfaces for customized beam expansion and optical designs.

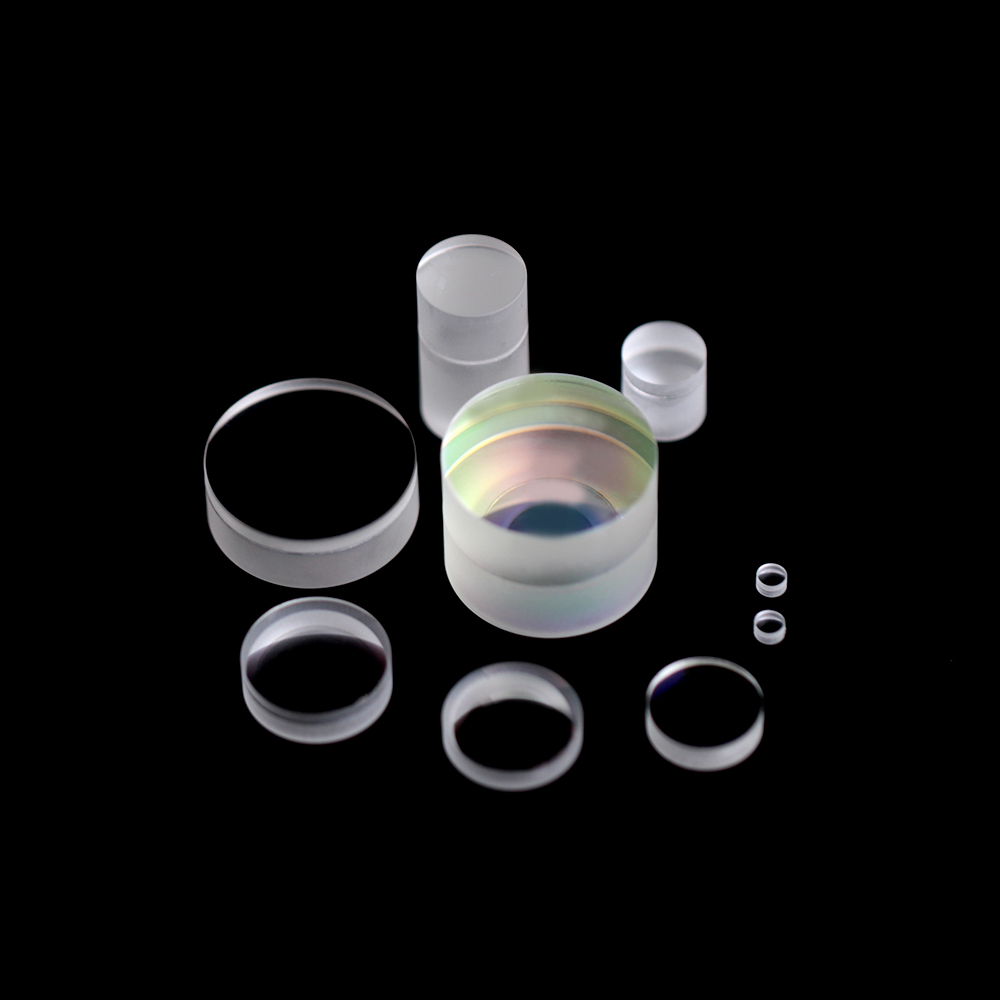

Achromatic Cylindrical Lenses
Multi-element cylindrical lens designs intended to reduce chromatic aberration over a specified wavelength range.
Aspheric Cylindrical Lenses
Specialized cylindrical lenses with a non-circular surface profile designed for improved aberration control in selected optical systems.
Optical Materials
N-BK7 Optical Glass
A widely used optical glass offering excellent homogeneity and reliable optical performance for visible and near-infrared applications.
Fused Silica
Provides excellent thermal stability, low thermal expansion, and broad optical transmission, depending on the selected material grade.
Other Optical Materials
Additional optical glass types and specialty substrate materials may be evaluated according to the operating wavelength, environmental conditions, and optical design requirements.
Applications
-
Laser beam shaping and line focusing
-
Laser diode beam correction
-
Optical scanning systems
-
Machine vision and inspection equipment
-
Spectroscopy and analytical instruments
-
Optical imaging and projection systems
-
Industrial laser equipment
-
Scientific and OEM optical assemblies
Custom Manufacturing and Quality Requirements
Custom cylindrical lens manufacturing requires careful control of optical geometry, surface quality, curvature, and dimensional accuracy.
Depending on the design, important specifications may include:
-
Radius of curvature and focal length
-
Clear aperture and external dimensions
-
Center thickness and edge thickness
-
Surface flatness and cylindrical surface figure
-
Scratch-dig and surface roughness
-
Cylindrical axis orientation
-
Wedge, centering, and dimensional tolerances
-
Coating wavelength and reflection requirements
Customers may submit technical drawings, optical design files, or detailed specifications for manufacturing feasibility review and quotation.
Request a Custom Cylindrical Lens Quote
Looking for a custom cylindrical lens manufacturer or supplier?
Contact Realpoo Optics with your required optical material, dimensions, focal length, coating specifications, quantity, and technical drawings.
Our team can review your requirements and provide a quotation based on the requested optical design.
Changchun Realpoo Photoelectric Co.,Ltd.
