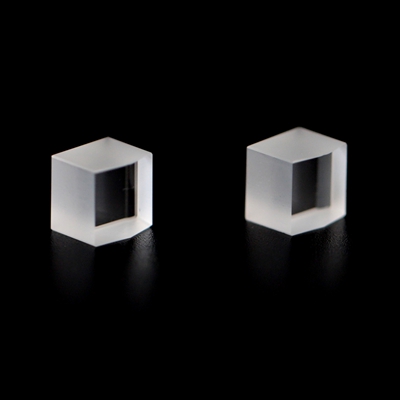

Square Powell Prism for Uniform Laser Line Generation

Square Powell prisms are precision optical components designed to transform a laser beam into a uniform line. Compared with ordinary cylindrical lenses, Powell prisms can provide better line uniformity, making them widely used in laser systems, machine vision, 3D scanning, optical inspection, and industrial alignment applications.

At Realpoo Optics, we provide custom square Powell prisms with different sizes, fan angles, materials, and coating options to meet various optical system requirements.

What Is a Square Powell Prism?

A square Powell prism is a special beam-shaping optical component. It uses a precisely designed curved optical surface to redistribute laser energy and generate a uniform laser line. This helps reduce the bright center and weak edges often seen in standard laser line projection.

Because of its excellent beam-shaping performance, the square Powell prism is commonly used in applications where stable and uniform line illumination is required.

Key Features

Realpoo Optics manufactures square Powell prisms with high precision and stable optical performance. Our products can support:

• Uniform laser line generation
• Custom square sizes
• Custom fan angles
• High surface quality
• Optical coating options
• Stable beam-shaping performance
• OEM / ODM customization
• Prototype and batch production

The square structure makes the prism easy to mount and integrate into optical assemblies or laser modules.

Custom Manufacturing Capability

As a professional optical components manufacturer, Realpoo Optics supports custom square Powell prism production according to customer drawings, samples, or application requirements.

Customization options include:

• Custom size
• Custom height
• Custom fan angle
• Custom optical material
• Custom surface accuracy
• Custom coating design
• Edge processing and chamfering
• OEM / ODM support

We can provide technical support for customers who need customized beam-shaping solutions for laser projection, machine vision, and inspection systems.

Optical Materials and Coatings

Square Powell prisms can be manufactured from optical glass, fused silica, and other suitable optical materials according to wavelength and application requirements.

Available coating options include:

• Uncoated
• AR coating
• Broadband AR coating
• Laser wavelength coating
• Custom coating design

Proper coating can help improve transmission, reduce reflection loss, and enhance the performance of laser line projection systems.

Applications of Square Powell Prisms

Square Powell prisms are widely used in:

• Laser line generation
• Machine vision
• 3D scanning
• Industrial inspection
• Laser alignment
• Optical measurement
• Structured light systems
• Laser modules
• Scientific research
• Customized optical assemblies

With stable beam-shaping capability and flexible customization, square Powell prisms are ideal for applications that require uniform laser line output.

Strict Quality Control

Quality control is essential for precision optical components. At Realpoo Optics, each square Powell prism can be inspected according to customer specifications, including dimensions, surface quality, surface accuracy, coating performance, appearance quality, and optical performance.

Our goal is to provide reliable optical components with stable quality and consistent performance for global customers.

One-Stop Optical Solutions

Realpoo Optics provides one-stop optical solutions from material selection and precision processing to coating, inspection, and delivery. Whether customers need standard Powell prisms or fully customized optical components, our team can offer professional support and flexible manufacturing services.

Realpoo Optics — Precision Optical Components, Custom Manufacturing, One-Stop Optical Solutions.
