Cylindrical lenses are optical components designed to focus or expand light in one direction only. Unlike spherical lenses, cylindrical lenses have curvature in a single axis, making them ideal for beam shaping, laser line generation, imaging systems, and optical correction applications.

At Realpoo Optics, we provide high-precision custom cylindrical lenses in various shapes, dimensions, materials, and coating options to meet different industrial and scientific requirements.

Cylindrical Lens for Precision Optical Applications

Cylindrical lenses are widely used in optical systems where light needs to be focused, expanded, or shaped along one axis. They are essential components in laser systems, imaging equipment, line scanning devices, medical instruments, metrology systems, and other precision optical applications.

Realpoo Optics manufactures a wide range of cylindrical lenses with excellent optical performance, stable quality, and flexible customization capability. We can produce lenses in round, square, and rectangular shapes, with different focal lengths, sizes, edge treatments, and coating specifications according to customer drawings or application needs.

With precision processing, advanced coating technology, and strict quality inspection, we provide reliable cylindrical lens solutions for both standard and custom optical projects.

What Is a Cylindrical Lens?

A cylindrical lens is a lens with curvature in only one direction. It focuses or diverges light into a line instead of a point. This special optical property makes cylindrical lenses highly suitable for applications such as:

• laser line generation
• beam shaping
• anamorphic correction
• barcode scanning
• imaging system correction
• optical measurement systems

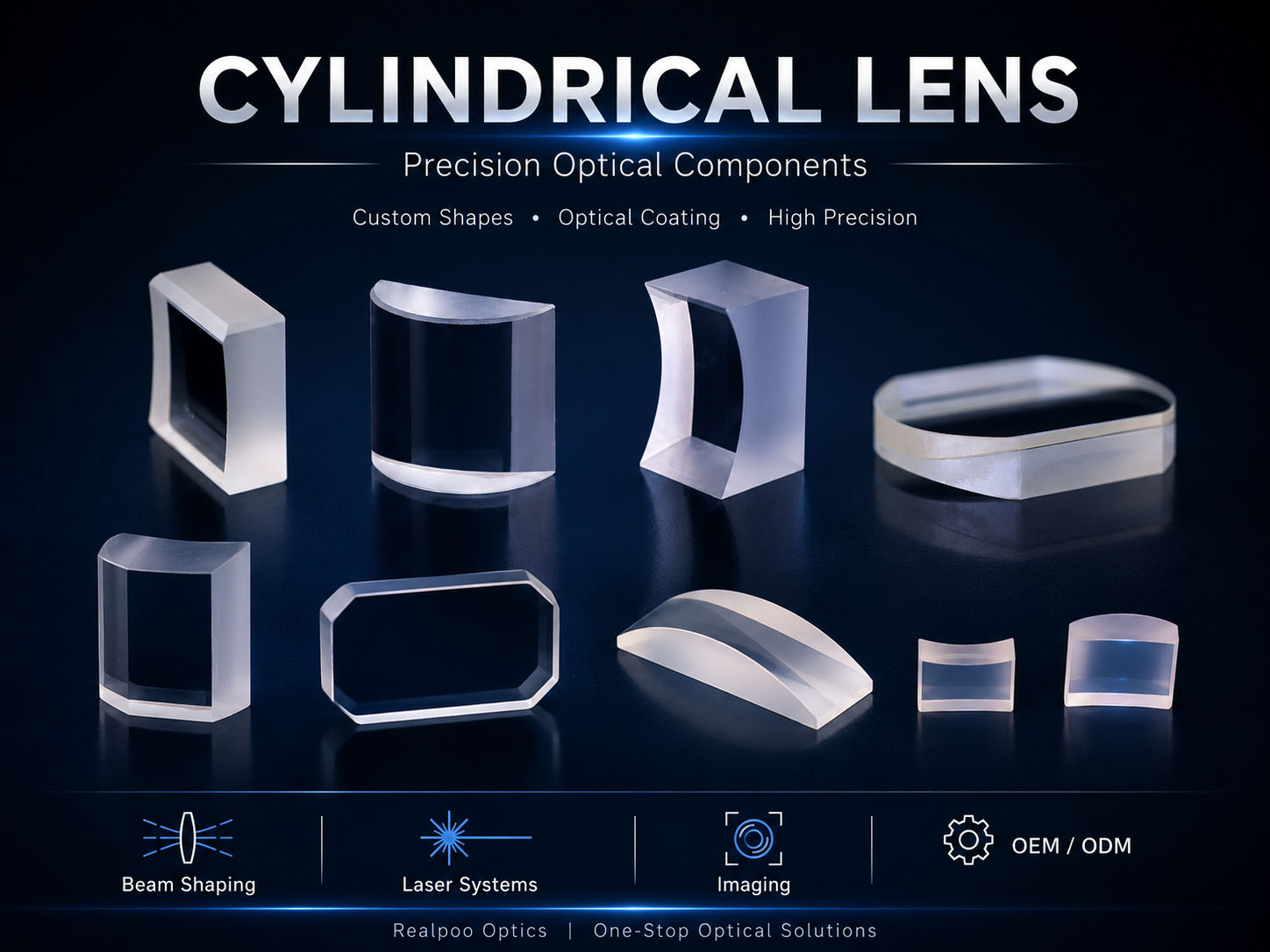

Cylindrical lenses can be manufactured in different forms, including plano-convex cylindrical lenses, plano-concave cylindrical lenses, double-convex cylindrical lenses, double-concave cylindrical lenses, and meniscus cylindrical lenses.

Product Features

• High precision optical processing
• Excellent surface quality
• Custom dimensions and shapes available
• Multiple optical materials supported
• AR coating and custom optical coating available
• Suitable for visible, near-infrared, and infrared applications
• Ideal for beam shaping and imaging correction
• OEM / ODM customization support

Product Advantages

Advantages of Our Cylindrical Lenses

At Realpoo Optics, our cylindrical lenses are manufactured to deliver:

• Stable optical performance
• High transmission efficiency
• Accurate line focusing capability
• Reliable dimensional consistency
• Flexible custom manufacturing solutions

We support both prototype development and volume production to meet different customer project requirements.Materials

Available Materials

Our cylindrical lenses can be manufactured from a variety of optical materials, including:

• N-BK7 / H-K9L
• Fused Silica
• Sapphire
• CaF2
• ZnSe
• ZnS
• Ge
• Si
• Other optical glass and infrared materials

Material selection can be customized based on wavelength range, thermal stability, transmission requirement, and application environment.

Coating Options

We offer various coating solutions for cylindrical lenses, including:

• Uncoated
• MgF2 Coating
• AR Coating
• Broadband AR Coating
• High Reflective Coating
• Infrared Coating
• Custom Coating Design

Custom coatings can be designed according to your wavelength, angle of incidence, and optical performance requirements.

Applications

Cylindrical lenses are widely used in:

• Laser systems
• Beam shaping systems
• Laser line projectors
• Imaging systems
• Barcode scanners
• Optical measuring instruments
• Medical devices
• Semiconductor equipment
• Machine vision systems
• Scientific research instruments

Manufacturing Capability--Custom Cylindrical Lens Manufacturer

Realpoo Optics is a professional manufacturer of precision optical components. We support custom cylindrical lens production based on drawings, samples, or application requirements.

Our manufacturing capability includes:

• Custom dimensions
• Custom radius and focal length
• Custom surface accuracy
• Custom coating
• Custom edge blackening
• Prototype and mass production
• OEM / ODM service

Whether you need standard cylindrical lenses or fully customized optical components, our engineering and production teams are ready to support your project.

Quality Control--Strict Quality Control

To ensure reliable performance, every cylindrical lens goes through strict quality inspection during manufacturing and before shipment. Depending on product requirements, we can inspect:

• Dimensions
• Surface quality
• Surface accuracy
• Centration
• Coating performance
• Appearance quality

Our goal is to provide stable, high-quality optical components for global customers.

Realpoo Optics – One-Stop Optical Solutions
