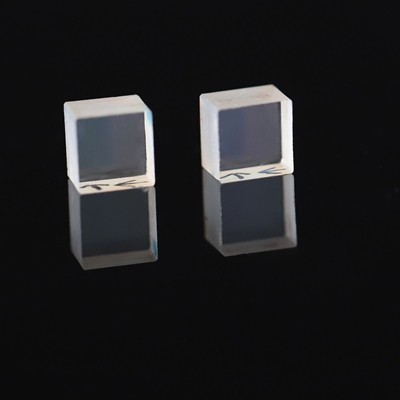

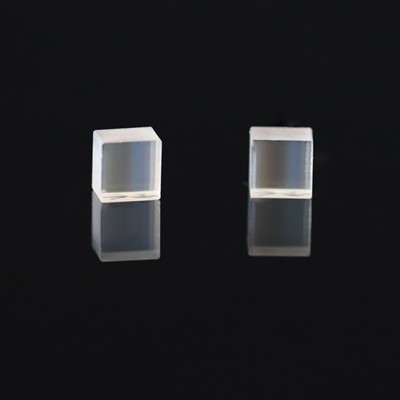

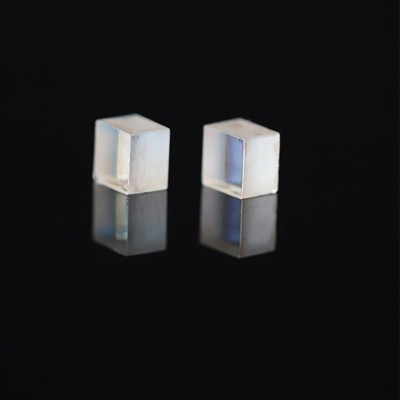

Transmittance Diffraction Grating 300L/mm

Transmittance diffraction gratings are precision optical components used to disperse incident light into different wavelength components. This product features a compact 8 × 8 × 6 mm size and 300 lines/mm groove density, making it suitable for spectroscopy, wavelength separation, optical measurement, laser systems, educational instruments, and compact optical modules. Realpoo Optics provides custom transmission gratings with different groove densities, sizes, substrates, coatings, and optical performance requirements.

Transmittance Diffraction Grating 300L/mm for Spectroscopy and Optical Measurement

A transmittance diffraction grating is designed to transmit and diffract light, separating it into multiple orders according to wavelength. It is widely used in optical systems where spectral dispersion, wavelength analysis, beam splitting, or optical calibration is required.

This transmission grating has a groove density of300L/mmand a compact size of8 × 8 × 6 mm, making it suitable for miniaturized optical systems, spectroscopy modules, laser analysis, wavelength selection, and precision optical instruments.

Realpoo Optics provides custom transmittance diffraction gratings based on customer drawings, optical system requirements, and application conditions. We support customization of grating size, groove density, substrate material, surface quality, dimensional tolerance, coating, and packaging.

Key Features

• Transmission diffraction grating design
• Groove density:300 lines/mm
• Compact size:8 × 8 × 6 mm
• Suitable for spectral dispersion and wavelength separation
• High optical transmission and stable diffraction performance
• Custom groove density and size available
• Suitable for compact optical modules and precision instruments
• OEM production based on drawings or samples

Typical Applications

Transmittance diffraction gratings are widely used in spectroscopy, spectrometers, wavelength measurement systems, optical education equipment, laser systems, optical sensors, monochromators, scientific instruments, optical communication research, and compact optical analysis modules.

Custom Manufacturing Capability

Realpoo Optics supports custom diffraction grating manufacturing and optical component processing. Products can be customized according to wavelength range, diffraction efficiency requirement, groove density, substrate material, dimensional tolerance, surface quality, and optical system design.
