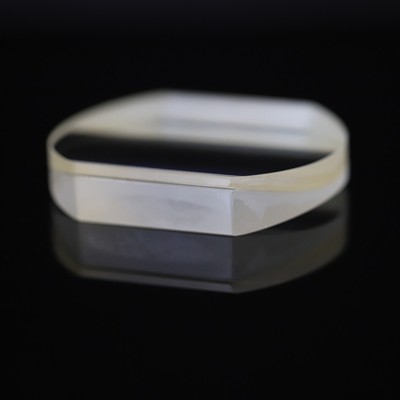

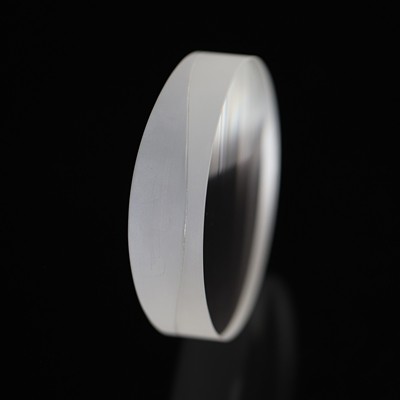

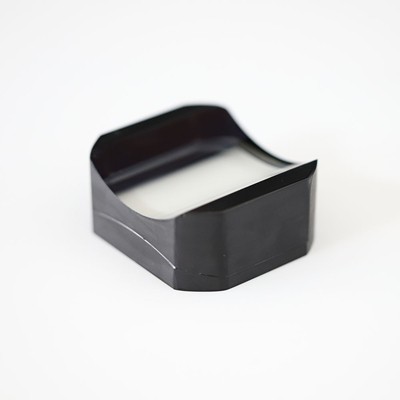

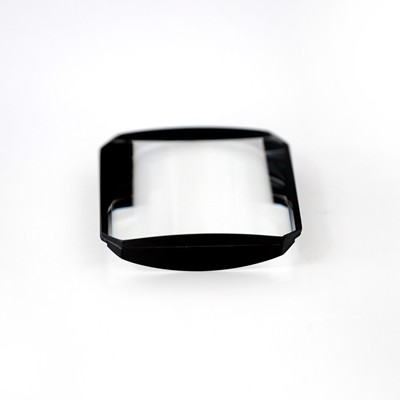

Custom Achromatic Cylindrical Lens

Product Introduction

Achromatic cylindrical lenses are precision optical components designed to focus or expand light in one axis while reducing chromatic aberration. They are widely used in laser beam shaping, imaging systems, optical measurement, machine vision, spectroscopy, medical instruments, and high-precision optical assemblies. Realpoo Optics provides custom achromatic cylindrical lenses with different materials, focal lengths, sizes, coatings, and optical performance requirements.

Custom Achromatic Cylindrical Lens for Beam Shaping and Imaging Systems

An achromatic cylindrical lens combines the function of a cylindrical lens with achromatic correction. Unlike a standard cylindrical lens, it helps minimize chromatic aberration across a specified wavelength range while focusing light in only one direction. This makes it suitable for applications requiring line focusing, beam expansion, beam compression, astigmatism correction, and high-quality optical imaging.

Realpoo Optics manufactures custom achromatic cylindrical lenses using optical glass combinations such as crown and flint glass, or other customized material combinations according to optical design requirements. Products can be customized based on wavelength range, focal length, dimension, radius, surface quality, coating, centering accuracy, and assembly requirements.

Key Features

• Achromatic correction for reduced chromatic aberration
• Cylindrical focusing in one optical axis
• Suitable for laser beam shaping and line focusing
• Custom focal length, size, radius, and thickness available
• Available with optical glass, fused silica, high-index glass, and custom material combinations
• AR coating, BBAR coating, laser line coating, or custom coating available
• High surface quality and precision polishing
• OEM production based on drawings, samples, or optical design files

Typical Applications

Achromatic cylindrical lenses are widely used in laser systems, beam shaping optics, machine vision, imaging systems, optical measurement instruments, spectroscopy, medical devices, barcode scanners, anamorphic beam correction, scientific research equipment, and precision optical assemblies.

Custom Manufacturing Capability

Realpoo Optics supports custom achromatic cylindrical lens manufacturing from prototype to batch production. We can provide optical design support, material selection, precision grinding, polishing, cementing, coating, edge blackening, inspection, and packaging according to customer requirements. Custom specifications such as wavelength range, focal length, dimensional tolerance, surface quality, coating performance, and optical assembly structure are available.
