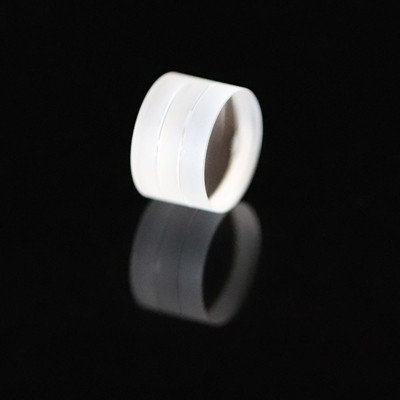

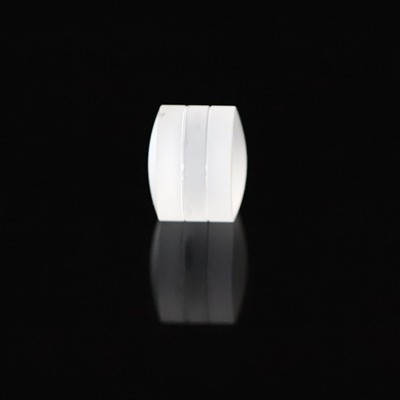

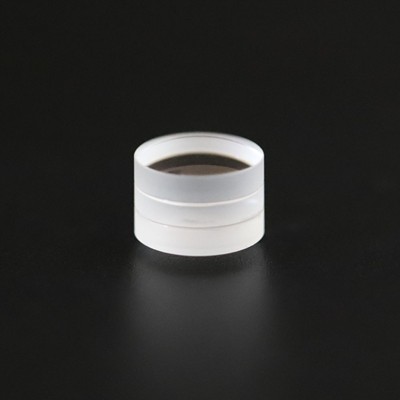

Achromatic Triplet Lenses for Advanced Optical Systems

Achromatic Triplet Lenses are designed with three carefully selected optical glass elements to achieve enhanced chromatic aberration correction and improved optical performance. By combining glasses with different refractive indices and dispersion characteristics, triplet lenses can reduce color fringing, improve image contrast, and deliver more accurate focusing across multiple wavelengths.

Compared with achromatic doublet lenses, achromatic triplets provide better correction of residual chromatic aberration and spherical aberration. They are commonly used in applications where high image quality, compact optical design, and stable broadband performance are required.

Realpoo Optics provides custom achromatic triplet lenses for imaging systems, laser optics, microscopes, telescopes, collimators, medical devices, and optical measurement instruments. We support OEM production based on customer drawings, samples, optical design files, or specific application requirements.

Key Features

• Three-element optical design for enhanced aberration correction
• Better chromatic correction than standard achromatic doublets
• High image clarity and improved contrast
• Suitable for broadband visible and near-infrared applications
• Custom optical glass materials available
• AR, BBAR, MgF2, and custom coatings available
• Precision polishing, cementing, alignment, and inspection
• OEM and small-batch customization supported

Common Specifications

• Lens Type: Achromatic triplet lens
• Material: N-BK7, H-K9L, F2, H-ZF series, fused silica, or custom optical glass
• Diameter: Custom sizes available
• Focal Length: Positive or negative focal length available
• Surface Quality: 60/40, 40/20, or higher precision upon request
• Surface Accuracy: λ/4, λ/8, λ/10 available
• Centering Accuracy: ≤3 arc minutes or customized
• Coating Options: MgF2, VIS AR, NIR AR, VIS-NIR BBAR coating
• Edge Treatment: Fine ground, blackened edge, mounted lens available
• Production Type: Prototype, small batch, and volume production

Applications

Achromatic Triplet Lenses are widely used in:

• High-resolution imaging systems
• Microscope optical systems
• Telescope and observation instruments
• Machine vision and inspection systems
• Medical optical devices
• Laser beam focusing and collimation
• Optical measurement and analysis instruments
• Broadband optical systems
• Projection and camera lens assemblies

Custom Achromatic Triplet Lenses

Realpoo Optics offers custom manufacturing services for achromatic triplet lenses. We can produce lenses according to your technical drawings, optical design requirements, wavelength range, coating specifications, and assembly needs.

Our production process includes precision grinding, polishing, coating, cementing, centering, and optical inspection to ensure stable performance and reliable quality. Whether you need prototype samples or regular production, Realpoo Optics can provide a practical optical solution for your application.
